Reliable NFLG Concrete Mixing Equipment for High Quality Production
As an official strategic distributor for NFLG equipment across the UK and Europe, Cabragh Engineering supplies a concrete mixer range designed for efficient, consistent and high quality concrete production.
The range includes NFLG Planetary Mixers and NFLG Twin Shaft Batch Mixers, suitable for ready mix, precast concrete, mortar, UHPC, refractory materials and other specialist applications.
Planetary Mixer Product Parameters
| Model | Output Volume (L) | Feed Volume (L) | Motor Power (kW) | Revolution Speed (RPM) | Rotation Speed (RPM) | Mixing Cycle Time (s) |
|---|---|---|---|---|---|---|
| JN1000 | 1000 | 1500 | 45 | 11 | 36 | ≤80 |
| JN1500 | 1500 | 2250 | 55 | 11 | 36 | ≤80 |
| JN2000 | 2000 | 3000 | 90（Reinforced） | 9 | 33 | ≤80 |
| JN3000 | 3000 | 4500 | 132（Reinforced） | 9 | 31 | ≤80 |
| JN4000 | 4000 | 6000 | 160 | 11 | 33 | ≤80 |
| JN4500 | 4500 | 6750 | 200 | 11 | 33 | ≤80 |
Twin Shaft Batch Mixer Dimensions
JSL Series
JSL1000, JSL1500, JSL2000, JSL2250, JSL3000, JSL3500, JSL4000, JSL4500
JS Series
JS5000, JS6000, JS7000, JS8000
Dimensions & Weight
| Model | Kw | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | (t) |
|---|---|---|---|---|---|---|---|---|
| JSL1000 | 2X22 | 2967 | 1530 | 1600 | 1570 | 2246 | 1780 | 6.7 |
| JSL1500 | 2X30 | 3187 | 1750 | 1820 | 1570 | 2246 | 1780 | 7.3 |
| JSL2000 | 2X37 | 3318 | 1650 | 1982 | 1700 | 2618 | 1790 | 9.8 |
| JSL2250 | 2X45 | 3318 | 1650 | 1982 | 1700 | 2618 | 1790 | 9.9 |
| JSL3000 | 2X55 | 3956 | 2300 | 2632 | 1700 | 2618 | 1820 | 11 |
| JSL3500 | 2X65 | 3956 | 2300 | 2632 | 1700 | 2618 | 1820 | 11.2 |
| JSL4000 | 2X75 | 4000 | 2210 | 2585 | 1820 | 2884 | 1990 | 13.2 |
| JSL4500 | 2X75 | 4240 | 2450 | 2825 | 1820 | 2884 | 1990 | 14 |
| JS 5000 | 2X90 | 4253 | 2430 | 2910 | 2175 | 3172 | — | 21 |
| JS 6000 | 4X65 | 6375 | 2960 | 3650 | 2180 | 3222 | — | 28 |
| JS 7000 | 4X75 | 7190 | 3240 | 3930 | 2180 | 3222 | — | 33 |
| JS 8000 | 4X90 | 7190 | 3240 | 3930 | 2180 | 3222 | — | 34 |
Designed for Performance and Durability
NFLG concrete mixers are built for demanding production environments, delivering uniform mixing, shorter batch times and reliable long term operation. Through Cabragh Engineering, customers across the UK and Europe can access proven NFLG mixing technology with expert support, advice and integration into complete concrete production systems.
- Official NFLG equipment supplied through Cabragh Engineering
- Suitable for commercial concrete and precast applications
- Heavy duty construction for demanding production sites
- Wear-resistant liners and mixing blades
- Flexible configuration options depending on project needs
- Designed for reliable operation and easy maintenance
A Mixer Range for Different Concrete Applications
Whether the project requires high speed batch production, specialist precast mixes or consistent blending of additives, fibres and pigments, Cabragh Engineering can supply NFLG mixer options to suit a wide range of concrete production needs.

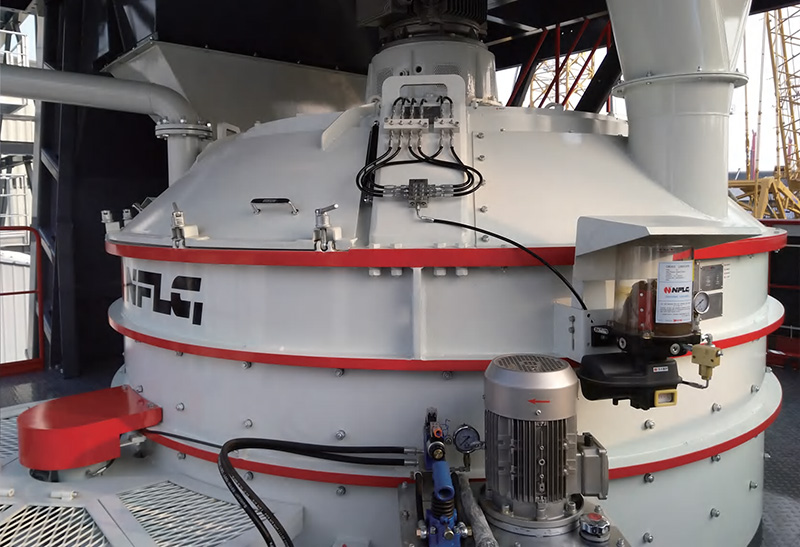

NFLG Planetary Mixer
The planetary mixer uses three-dimensional mixing movement to create strong convection, diffusion and shear action inside the mixing chamber. This helps additives, pigments and fibres disperse quickly and evenly, making it suitable for precast concrete, coloured concrete, high performance concrete, UHPC and self-compacting concrete.

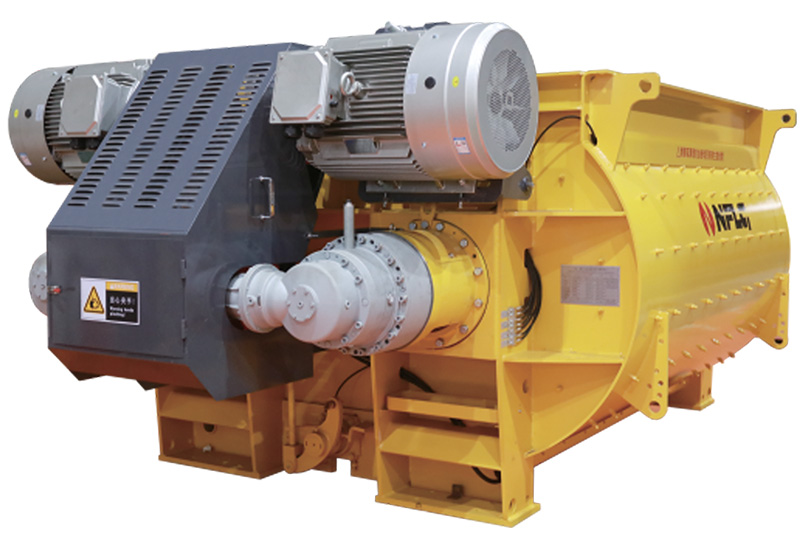

NFLG Twin Shaft Batch Mixer
The twin shaft batch mixer is designed for fast, high volume concrete production. Its spiral blade system improves material circulation and creates a strong shearing effect, helping to achieve better homogeneity, shorter mixing times and consistent concrete quality.
Frequently Asked Questions
Concrete mixers are an important part of any batching or concrete production system. Below are common questions to help explain how planetary and twin shaft mixers work and where each option is best suited.
What is a planetary concrete mixer?
A planetary concrete mixer uses a rotating mixing system that moves material in multiple directions inside the mixing chamber. This helps create a highly uniform mix and is especially useful for precast concrete, UHPC, coloured concrete, self-compacting concrete and mixes that include fibres, pigments or additives.
What is a twin shaft batch mixer?
A twin shaft batch mixer uses two horizontal mixing shafts with specially designed blades to move material quickly and efficiently. It is commonly used for ready mix concrete, precast concrete and high output production where fast mixing, consistency and durability are important.
Which mixer is best for precast concrete?
Both mixer types can be suitable for precast concrete. Planetary mixers are often chosen for specialist precast products, coloured concrete and high performance mixes, while twin shaft mixers are well suited to larger volume production and fast batch cycles.
Can these mixers handle specialist concrete mixes?
Yes. The mixer range can support a variety of concrete and material types, including mortar, refractory materials, ceramic clay products, UHPC, steel fibre mortar and environmental protection materials, depending on the selected mixer configuration.
Are the mixers easy to maintain?
The mixers are designed with maintenance in mind, including robust structures, wear-resistant components, inspection access, hydraulic discharge systems and lubrication features depending on the model. This helps support reliable operation and reduce downtime.
Batching Plants
Our team is here to help with specifications, custom layouts or project requirements.
